Power Supply from China
Warning: Safety Aspects of Using Cheap Power Supply

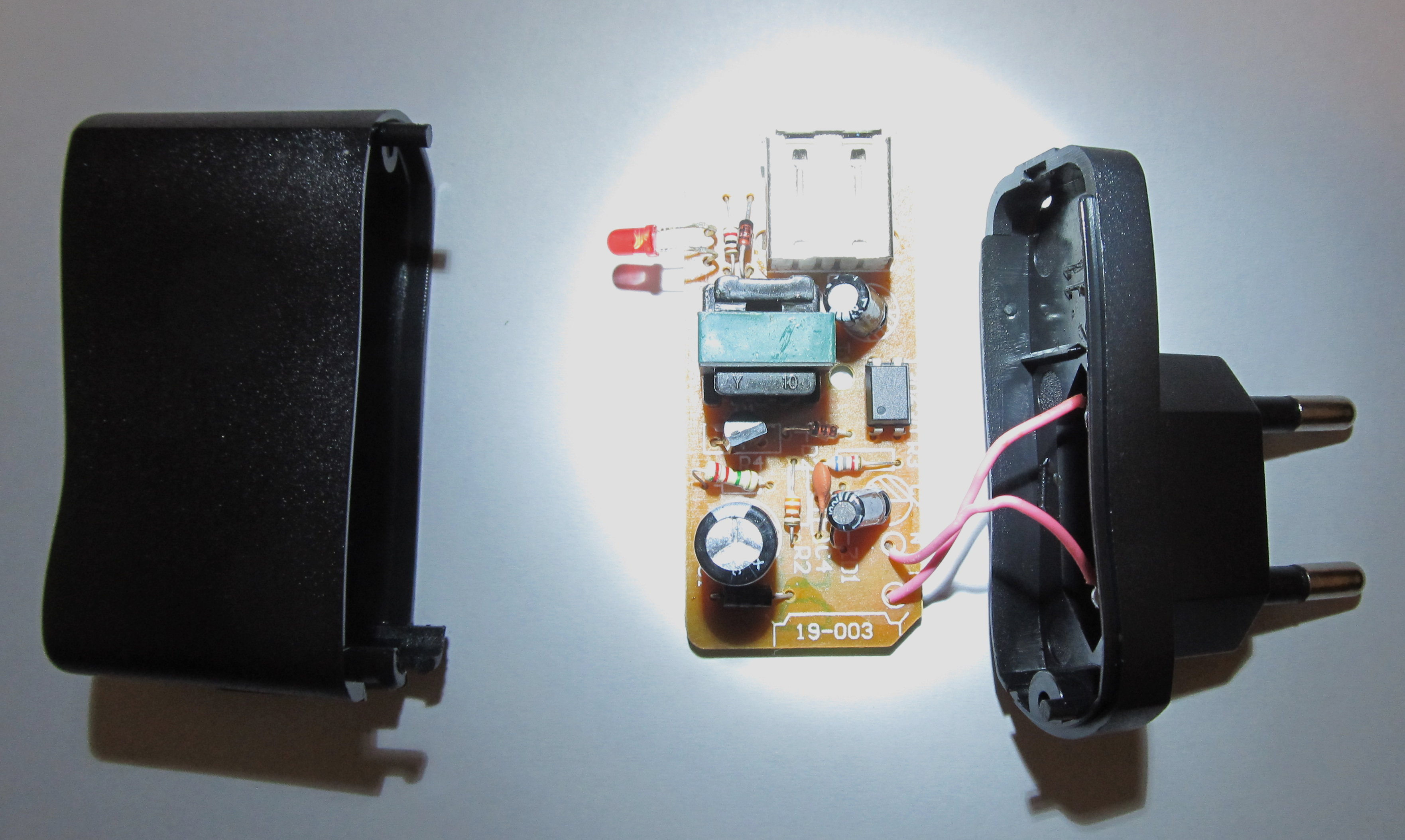

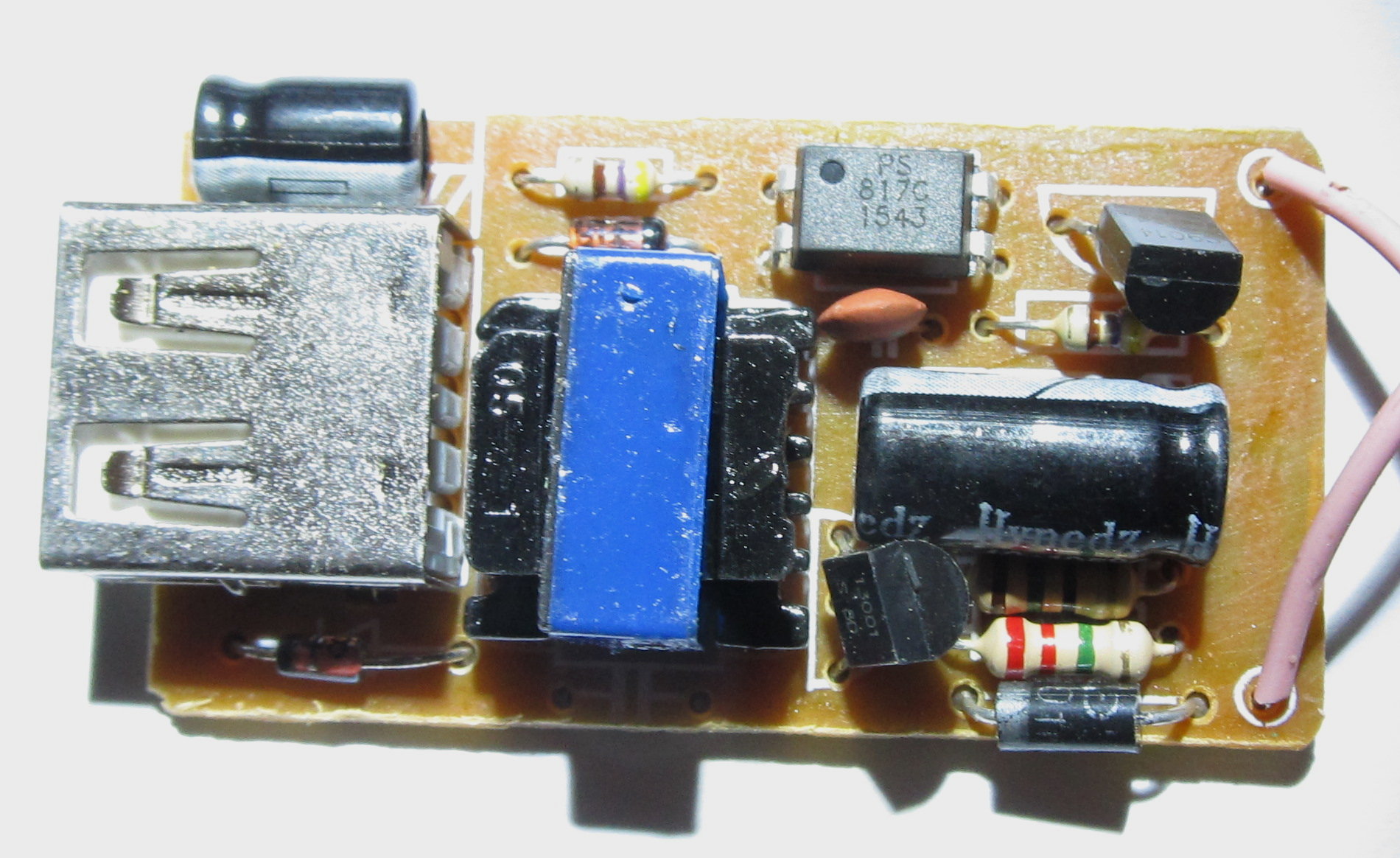

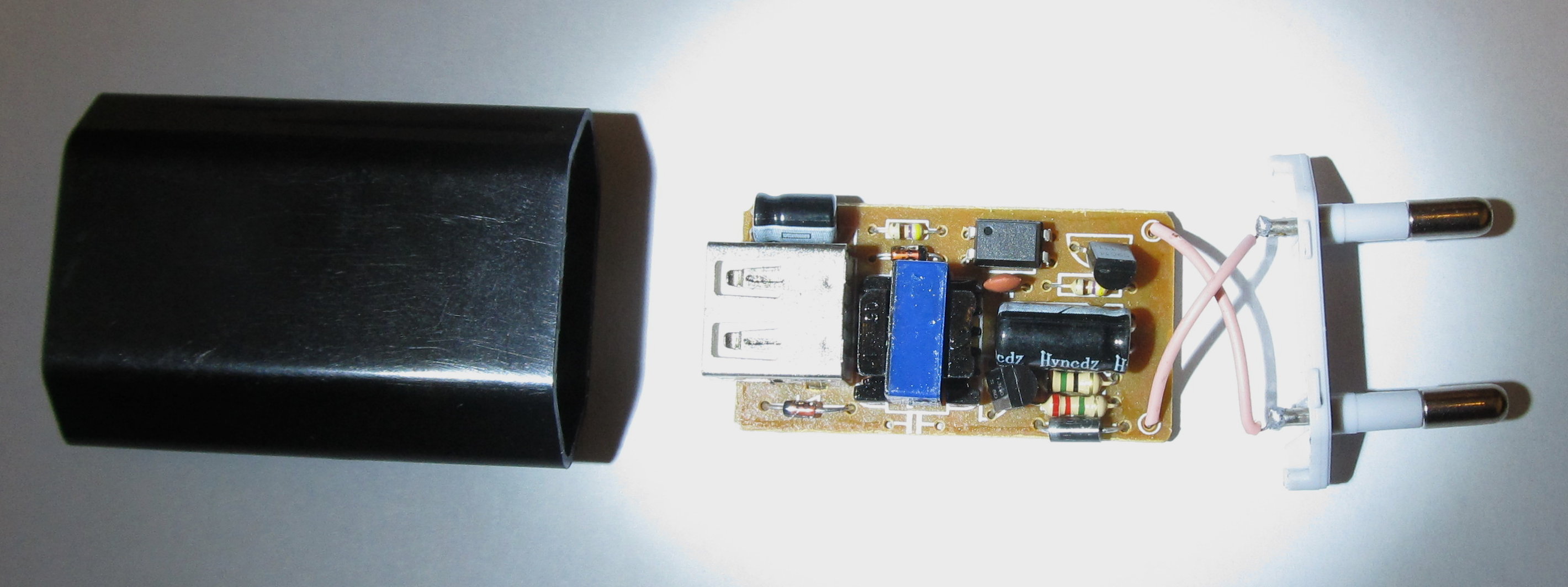

The (Chinese) PSUs on following pictures have safety problems:
-

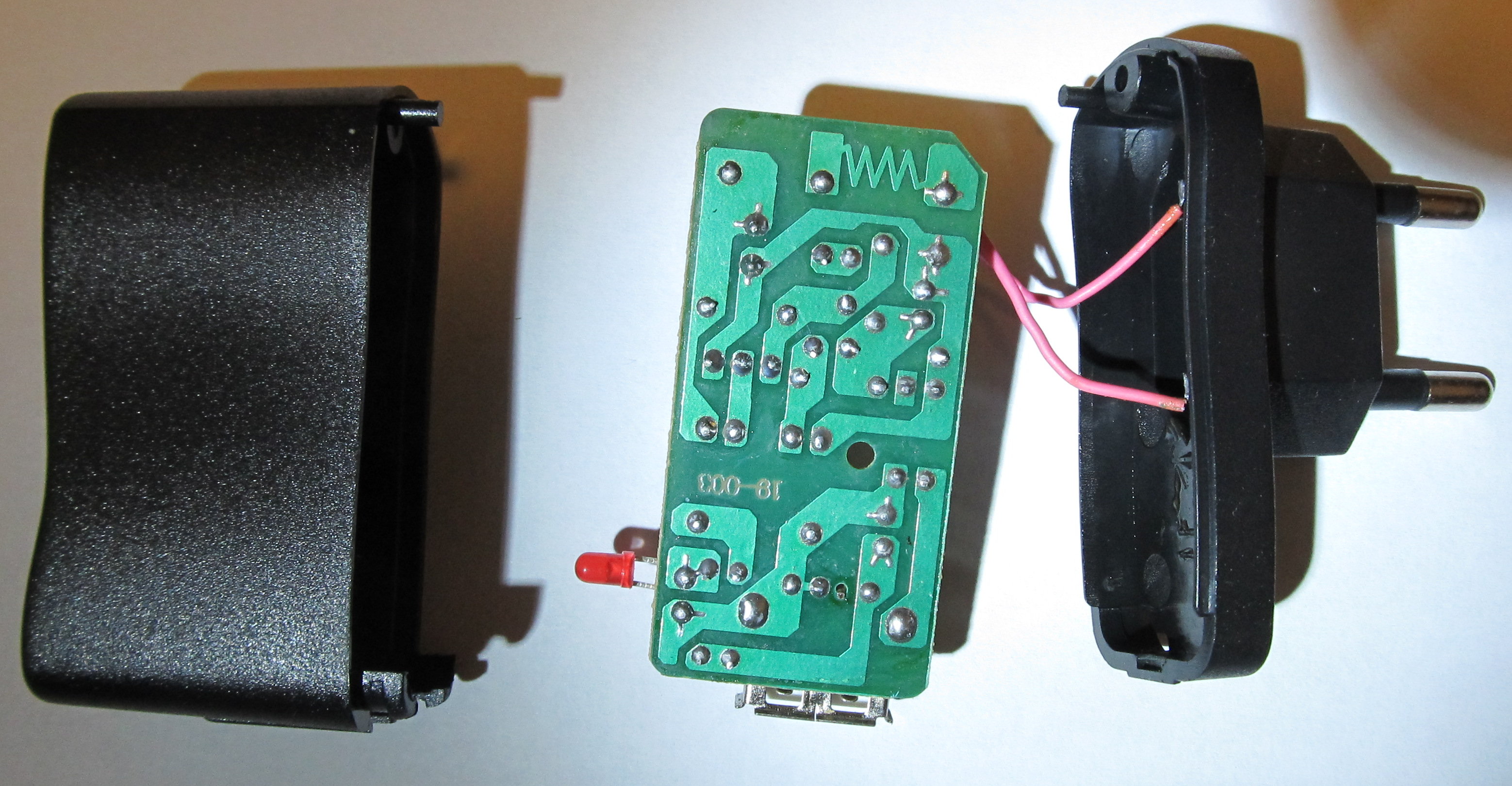

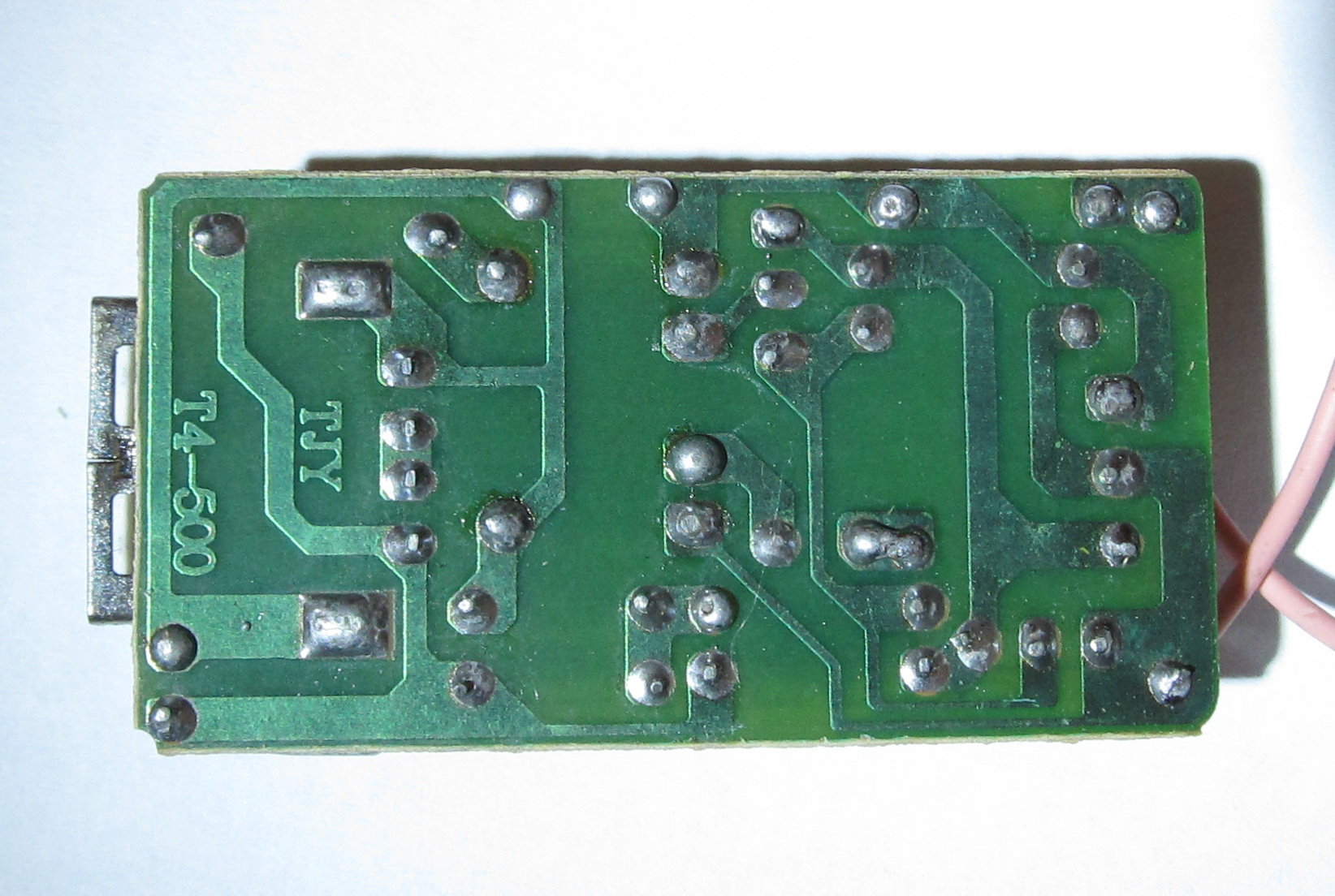

too small distance between traces on PCB = possible electric shock,
-
the diode on output (1N4148?) seems to be usable up to cca 200mA only = fire hazard,
-

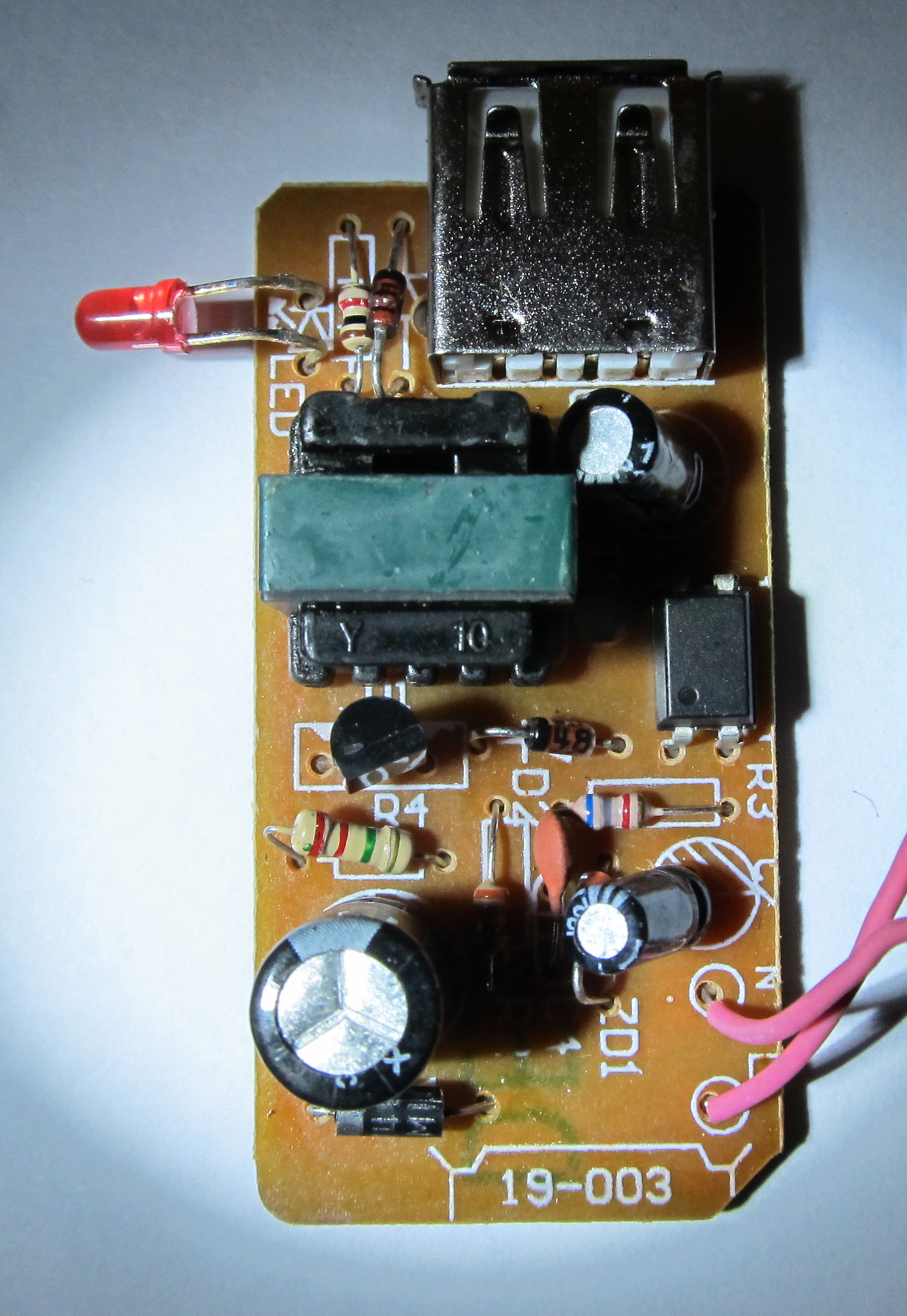

psu2 has shortened the optoisolator input = no feedback.
- ...
The PSUs do not have electromagnetic interference filter.
