Printing, copying and scanning

Display mode of page:  All     CC     Library

Accessible devices

There are 2 multifunction devices, 1 large format inkjet printer and 1 cutting plotter:

Name Type Location Services Color Format Duplex Payments
mflibx Xerox VersaLink C7130 Library C120 Printing, copying
and scanning		 Color A4, A3 Yes HRDS
ljlibc-bw
ljlibc-color		 Xerox WorkCentre 7335 Library C120 Printing, copying
and scanning		 Color A4, A3 Yes HRDS
djz3100 HP Designjet Z3100 Computer Centre L115 Printing instructions
are on this page		 Color A2 up
to A0+		 No Cash
Graphtec CE5000-40 Rudolf Čejka L130 Cutting instructions
are on this page		 Width up
375 mm

Payments and pricing

Payments are deducted from an account held at Halls of Residence and Dining Services (HRDS), that can be charged in dining facilities and in service point. Current balance on the account and payments made during the last period can be checked on the HRDS page Board - card operations. For printing, you must have a positive balance account. If printing is more expensive than the balance on the account, the printing is finished, however then it is needed to charge the account and wait until re-payment is done and printing is unblocked.

Prices:

Services Color Format Price
Printing and copying B/W A4 1,20 Kč
A3 2,40 Kč
Color A4 2,20 Kč
A3 4,40 Kč
Scanning Free

General information

Copying and scanning on the Xerox WorkCentre 7335 is completely independent on printing and its accounting. So it is possible to print on it at any time and it does not matter, whether there is someone working or not working (is logged in or is not).

After each printing using CC payment, report on the success or failed course is sent by e-mail to your school address. Report contains the number of pages being printed, the remaining amount on the account, and a description of the error, if it occured during printing. When HSRB payment is used, information about the operation performed, the unique identification, number of black and white pages A4, black and white pages A3, color pages A4, color pages A3, the amount paid and the state of the deduction.are sent by e-mail.

If one of the trays in available devices runs out of paper, tell it to operational service, to ensure its refill. Using the custom paper is forbidden because of the different quality of available office and other paper and because of the need to modify printer settings for different types of paper to prevent deterioration of print quality, paper jams and unnecessary servicing.

Printing in Windows

To print, select the printer and send the job to it.

Example of using the printer ljlibc-bw/ljlibc-color

Selection of printer ljlibc-bw/ljlibc-color in library:

[Printer selection]

Changing printing properties:

[Change of printing properties]

Default printer settings for ljlibc-bw/ljlibc-color are one-sided black and white/color printing on A4 (for color printing, black and white pages remain black and white and as color are charged only those pages containing colored points):

[Printing properties]

The change for ljlibc-bw/ljlibc-color to double-sided printing using flip on long edge (2-Sided Print) or short edge (2-Sided Print, Flip on Short Edge):

[Change to double-sided printing]

The change for ljlibc-bw/ljlibc-color to A3 format:

[Change to A3 format]

The change for ljlibc-bw/ljlibc-color to print multiple pages per one sheet, in Document Options tab:

[Change to print multiple pages per one sheet]

Example of using the printer ljstudc

Properties for all printers ljstud[cmno] are the same, so it is sufficient to show example for ljstudc in library:

[Printer selection]

Changing printing properties:

[Change of printing properties]

Default printer settings for ljstudc are one-sided black and white printing on A4:

[Printing properties]

The change for ljstudc to double-sided printing using flip on long edge (2-Sided Print) or short edge (2-Sided Print, Flip on Short Edge):

[Change to double-sided printing]

The change for ljstudc to print multiple pages per one sheet, in Document Options tab:

[Change to print multiple pages per one sheet]

Printing in Unix

On Linux and on servers eva and merlin, you can use either GUI applications for printing, or it is possible to print from command line using commands lpr -P printer file or lp -d printer file. By default, printer ljstudn is set and for printing to this printer parameters -P or -d can be omitted.

Formats PostScript (*.ps), PCL and text are recognized. Files in PostScript or PCL are sent to the printer directly. A text file is converted to PostScript before it is sent to the printer. Lines may be terminated by the characters CR/LF or just LF character. Czech must be encoded in ISO8859-2. On one page there will be two subpages, each with 64 lines with 80 characters.

Examples of some useful commands

  • Display a PostScript file: gv.
  • Convert PDF to PostScript, 1. method: acroread. In File/Print select Print to file.
  • Convert PDF to PostScript, 2. method: pdf2ps (part of gs).
    Ex.: File input.pdf will be converted to input.ps:
    pdf2ps input.pdf
  • Transform PostScript: pstops, psselect, psnup, psresize, psbook, epsffit (package psutils).
    Ex.: Print two pages on one with frame and the enlarged edges:
    psnup -d -b4 -m10 -2 input.ps output.ps
  • Convert text to PostScript: a2ps.
    Ex.: On one page there will be two subpages each with 64 lines with 80 characters:
    a2ps -o output.ps input.txt
  • Transcoding text: iconv.
    Ex.: Conversion of encoding CP1250 (Windows) to ISO8859-2 (Unix):
    iconv -f CP1250 -t ISO8859-2 <input.txt >output.txt

Copying and scanning

Attach the card to the card reader (A). After attaching the card, wait a while, especially when the device wakes up from sleep mode. Normal response time is 1-15 seconds.

[Xerox printer]

If the touch screen (B) offers access to your account, confirm it by pressing the Yes button. Otherwise, press No and immediately inform the operational service.

[Display with login confirmation]

On the main screen, select either the Copy to copying or E-mail for scanning to e-mail.

[Display with main screen]

Put the source for copying or scanning either the image down on the glass sensor (F), or the image up into the automatic feeder for individual sheets (E). The glass sensor can copy or scan almost anything, but two-sided originals have to be flipped manually. In contrast, it is possible to put only individual and intact sheets A4 or A3 (without staples!) into the automatic feeder, but the feeder can handle more sheets at once, including two-sided originals.

For copying, check the settings and press the trigger button (D).

  • Number of copies can be changed using the numeric keypad. The selected number appears at the top right of the touch screen.
  • In the Output Color section, you can change the default black and white copying to the automatic detection or color copying.
  • In the section Reduce/Enlarge, you can choose whether to keep the size of original, or whether you want it to shrink or enlarge. One from the predefined ratios for reduction or enlargement can be selected by pressing More... button.
  • By default, output paper size is selected automatically, according to the copying source. If automatic selection fails, or you want to force exact output type (A4 vertically, A4 horizontally or A3), set the output paper size in the Paper Supply section.
  • In the 2 Sided Copying section, you can set if the original is one-sided (1 Sided), or two-sided (2 Sided), and what is to be the output. For example, 1 -> 2 Sided means that two one-sided sheets are copied to one two-sided sheet.
  • Other settings can be found in the Image Quality, Layout Adjustment, Output Format and Job Assembly tabs.
  • To return to the main screen, press All Services button in the top right of the touch screen.

[Display with copy screen]

For scanning to e-mail, check the settings and press the trigger button (D). If you want to scan several pages into one document using glass sensor, you have to press in time the Next Original button during scanning of the first page. To end the scanning, then press the Last Original button.

The maximum allowable size of one e-mail is 10 MB. The scanning process stops when the size is exceeded, and you have to start again. Therefore, it is better to divide scans into parts with approximately 10 pages, which with pre-set parameters in one e-mail usually fit.

  • By default, there is selected your school e-mail. You can change it, or you can add more recipients through letter keyboard (New Recipient...) or an LDAP list search (Address Book...).
  • In the Color Scanning section, you can change the default color scanning to automatic detection, black and white scanning or grayscale scanning.
  • In the 2 Sided Scanning section, you can set if the original is one-sided (1 Sided), two-sided (2 Sided), or two-sided with rotating the second side (2 Sided, Rotate Side 2).
  • The default output format is PDF. For change to S-PDF (Searchable PDF - the document in addition to image layer contains a text layer with the text recognized by OCR) it is possible in E-mail Options tab to press the File Format... button and to change Searchable Text setting from Image Only to Searchable.
  • In the Advanced Settings tab, it is possible in Resolution... setting to change the default resolution of 200 dpi to 300, 400 or 600 dpi. The last two values 400 and 600 dpi are not available for output format S-PDF.
  • Other settings can be found in the Advanced Settings, Layout Adjustment a E-mail Options tabs.
  • To return to the main screen, press All Services button in the top right of the touch screen.

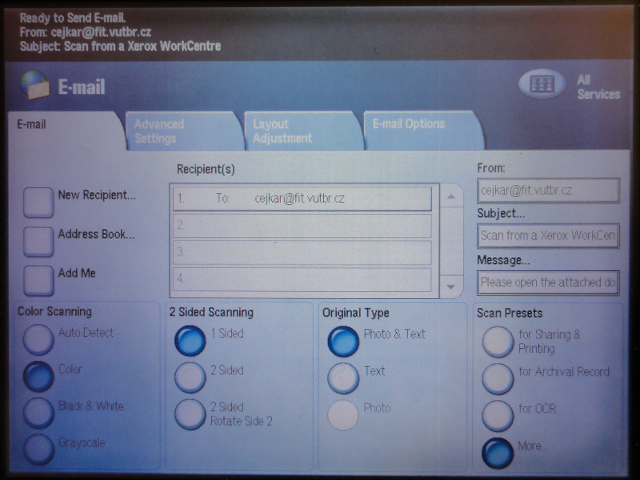

[Display with scan to e-mail screen]

Another possibility is to select the Scan to PC on the main screen and to fill in the displayed login fields for storing data output via the protocol FTP. This way, there is no longer any output size limit.

Who Students Students Staff Staff
Where Windows Unix Windows Unix
Server fik eva aja kazi
Save in empty_or_subdirectory empty_or_subdirectory empty_or_subdirectory empty_or_subdirectory
User Name your_login
Password your_password

After the work do not forget to logout yourself by pressing the button labeled with Odhlášení/Logout and a key symbol (C)! To complete logout, press the Logout button on the touch screen.

[Display with logout confirmation]
